Electrical synapse

A synapse is a tiny junction at the end of a neuron that facilitates the transmission of signals to adjacent neurons. Neurons, which are specialized cells responsible for conveying information throughout the nervous system, communicate through these synapses. Located at the points where neurons link with one another, synapses are crucial for the brain's overall functionality.

1.0Introduction to Synapse

Synapses in a neuron

  • Synapses link neurons and enable the transmission of information from one neuron to another. When a nerve signal reaches the end of the Neuron, it cannot simply continue to the next cell.
  • Most of the time, it triggers the release of neurotransmitters, which can then carry the impulse across the synapse to the next Neuron.
  • Once a nerve impulse has triggered the release of neurotransmitters, these neurotransmitters (chemical messengers) cross the tiny synaptic gap and are taken up by receptors on the surface of the next Neuron.
  • These receptors act like locks, while the neurotransmitters function like keys. Neurotransmitters may excite or inhibit the Neurons.

2.0Parts of the Synapse

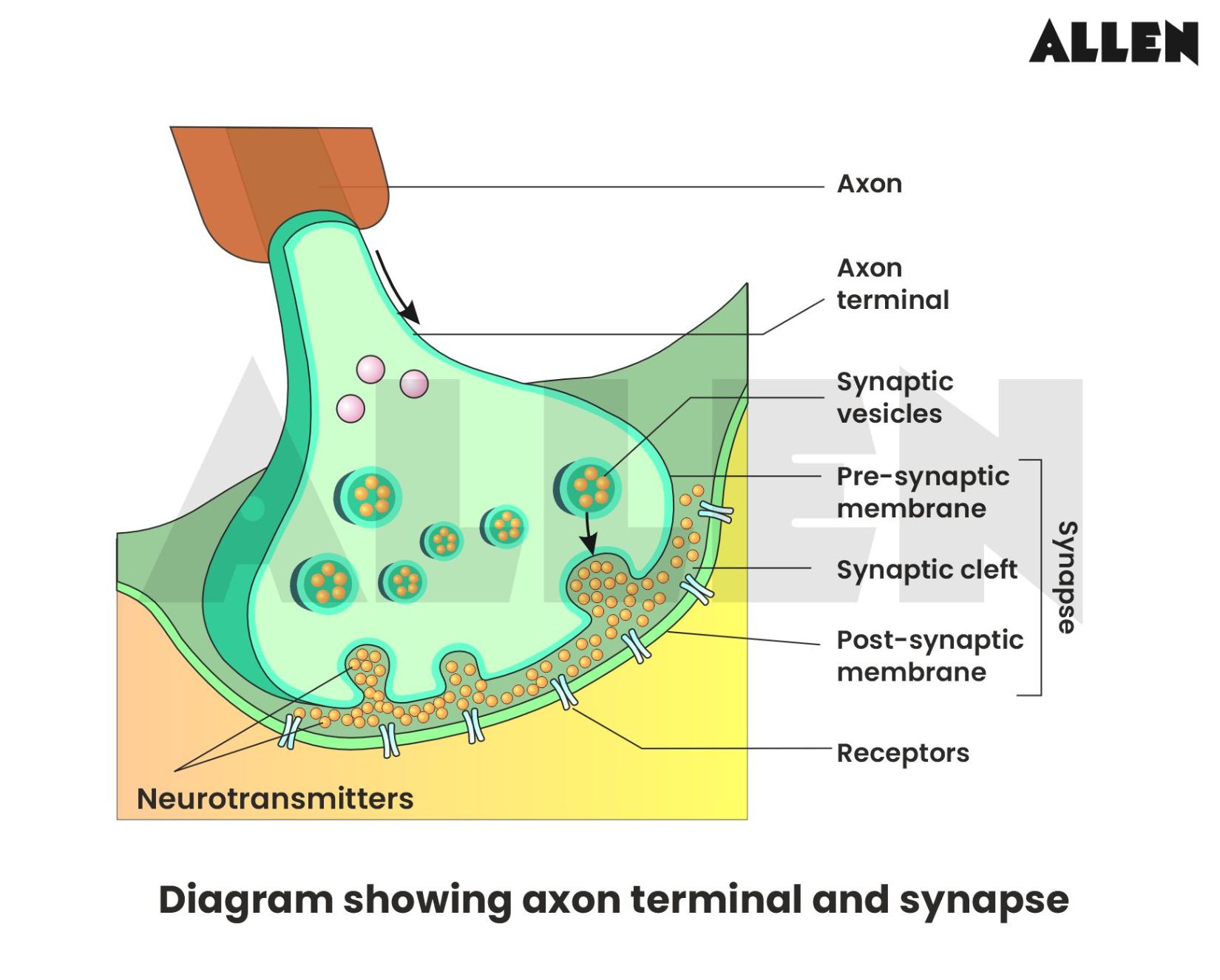

Diagram showing axon terminal and synapse

Synapses consist of three primary components:

1. The presynaptic ending, which houses neurotransmitters.

2. The synaptic cleft, the gap between the two nerve cells.

3. The postsynaptic ending, which contains receptor sites.

3.0Types of synapse

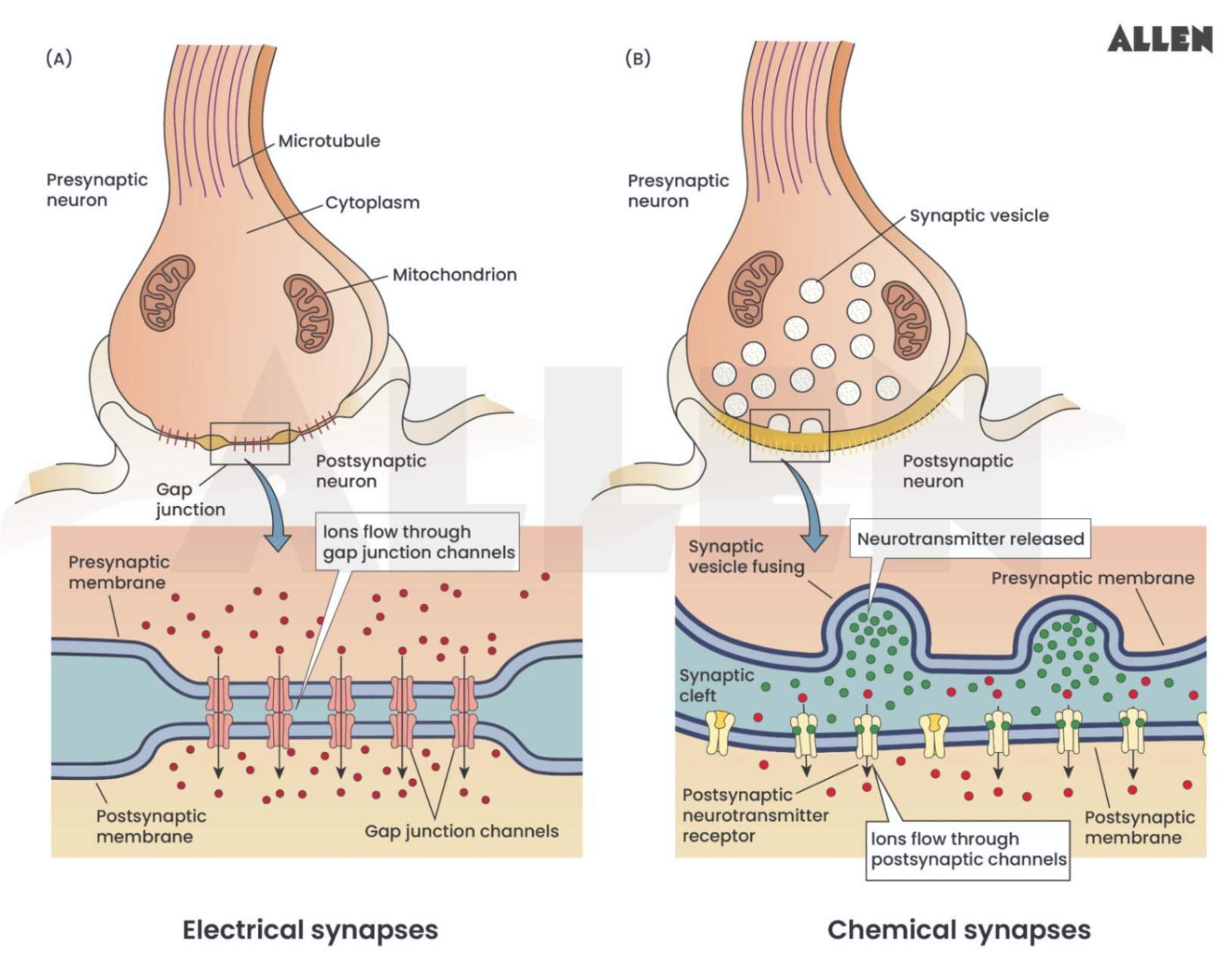

Images showing the parts of electrical and chemical synapses

There are two main types of synapses:

  1. Electrical Synapses

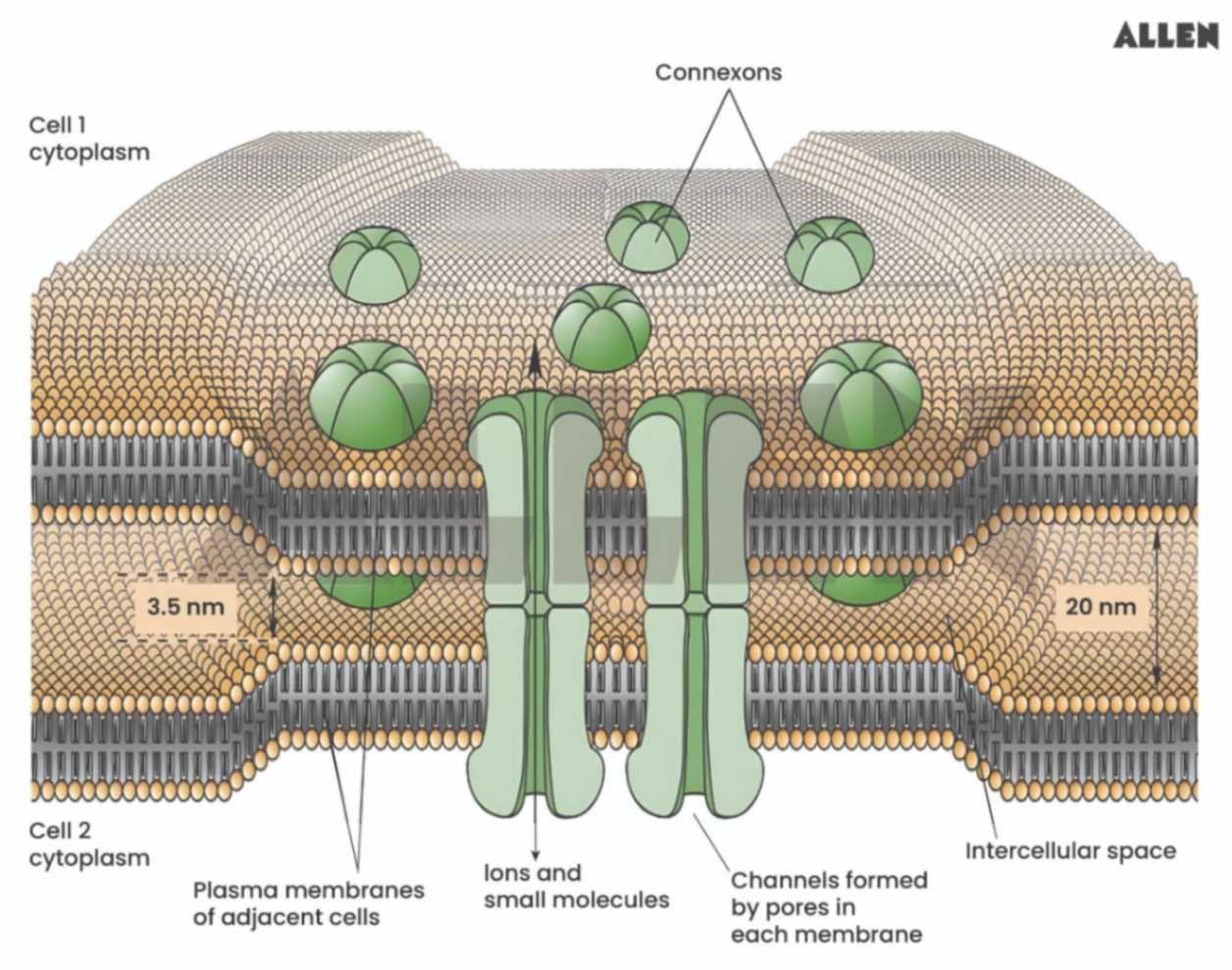

Image showing the structure of an electrical synapse

Structure of an Electrical synapse

  • In electrical synapses, two neurons are linked by specialized structures called gap junctions.
  • These gap junctions enable electrical signals to pass swiftly from the presynaptic cell to the postsynaptic cell, accelerating signal transmission.
  • The unique protein channels connecting the neurons allow positive electrical currents to flow directly from the presynaptic neuron into the postsynaptic cell.
  • Think of the nerve signal as the electrical current and the neurons as wires. Synapses would be junctions that connect two wires(Neurons).
  1. Chemical Synapses

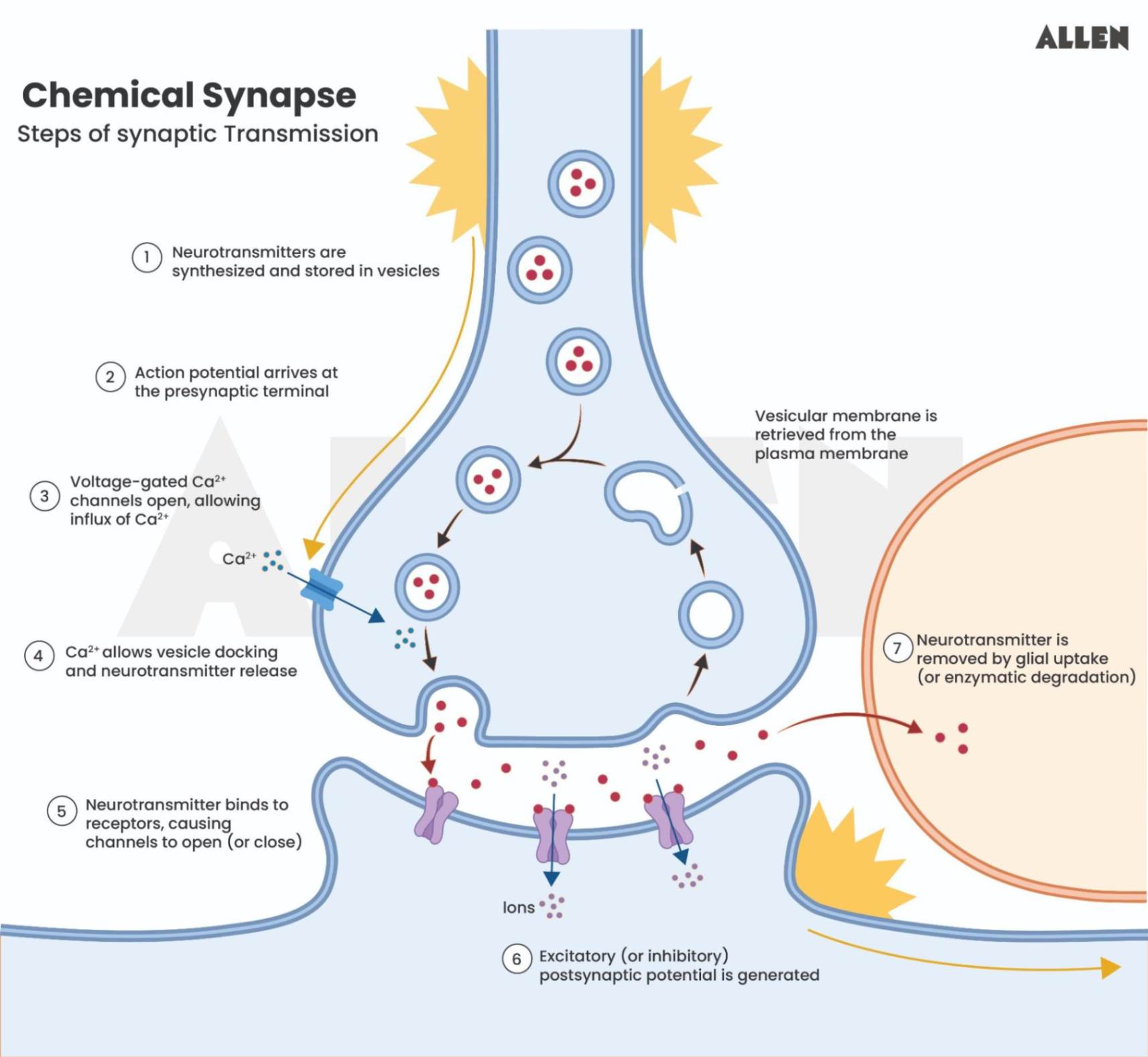

Mechanism in a chemical synapse

  • In a chemical synapse, electrical activity in the presynaptic neuron triggers the release of chemical messengers called neurotransmitters.
  • Most synapses are chemical. These neurotransmitters diffuse across the synaptic gap and attach to specific receptors on the postsynaptic cell.
  • Depending on their effect, neurotransmitters either excite the postsynaptic neuron, leading to the firing of an action potential, or inhibit it, preventing the continuation of the signal.

4.0Comparison Between Chemical and Electrical Synapses

Chemical Synapse

Electrical Synapse

A chemical synapse is a cell-to-cell connection where neurotransmitters convey nerve impulses unidirectionally.

An electrical synapse is a cell junction connecting two nerve cells, allowing for the swift transmission of nerve impulses through ionic flow.

These types of synapses are present in higher vertebrates.

Found in lower vertebrates and invertebrates.

Nerve impulses transmit a chemical signal using neurotransmitters.

Nerve impulses are transmitted as electrical signals through gap junctions or low-resistance pathways.

Transmission of signals occurs in one - stay.

The transmission of signals occurs in two ways.

Large in size (10- 20 nm).

Smaller in size (0 - 2).

Synaptic knobs contain synaptic vesicles and a large number of mitochondria.

Synaptic knobs contain no synaptic vesicles and very few mitochondria.

Chemoreceptors are present on the post- synaptic membrane.

Chemoreceptors are absent on the post - synaptic membrane.

Transmission of information is slow.

Transmission of information occurs at high speed.

More vulnerable to fatigue.

Less vulnerable to fatigue.

Sensitive to hypoxia and pH.

Insensitive to hypoxia and pH.

It is found in most of the neuron junctions.

Located in the retina, olfactory bulb, cerebral cortex, lateral vestibular nucleus, and hippocampus.

Table of Contents


  • 1.0Introduction to Synapse
  • 2.0Parts of the Synapse
  • 3.0Types of synapse
  • 4.0Comparison Between Chemical and Electrical Synapses

Frequently Asked Questions

Electrical synapses function via gap junctions, specialized channels that connect the cytoplasm of two neurons. These channels allow ions and small molecules to pass directly from one Neuron to the next, creating an electrical current that propagates signals almost instantaneously.

Gap junctions are specialized protein structures that form a bridge between adjacent neurons at electrical synapses. They consist of connexin proteins that align to create channels, enabling the direct flow of ions between the cells.

Electrical synapses are common in both the nervous systems of invertebrates and vertebrates. In humans, they are found in brain regions responsible for synchronizing neuron activity, such as the retina, hippocampus, and certain areas of the cerebral cortex. They are also present in cardiac muscle and smooth muscle tissues.

Speed: Electrical synapses transmit signals much faster than chemical synapses because they do not rely on the release and binding of neurotransmitters. Directionality: Electrical synapses are often bidirectional, allowing signals to travel both ways, while chemical synapses are typically unidirectional. Modulation: Chemical synapses are more flexible and can be modulated (e.g., enhanced or diminished) based on neurotransmitter release, while electrical synapses provide consistent, fast transmission but with less modulation.

The direction flow allows for near-instantaneous signal transmission. Synchronization: They help synchronize the activity of groups of neurons, such as those controlling rhythmic activities like breathing or heartbeat.

Lack of Plasticity: Electrical synapses are less adaptable than chemical synapses. They don't allow for the fine-tuned modulation in chemical signaling, limiting their role in more complex cognitive processes. Limited Signaling: They can only transmit simple signals, like action potentials, whereas chemical synapses can modulate signals with different neurotransmitters.

Although they are less plastic than chemical synapses, electrical synapses can change in response to developmental stages, experience, or environmental conditions. For example, based on neuronal activity, gap junctions may increase or decrease in size or number.

Yes, dysfunction in electrical synapses or gap junctions can lead to diseases. For instance, alterations in gap junctions have been linked to epilepsy, cardiac arrhythmias, and neurodegenerative disorders.
