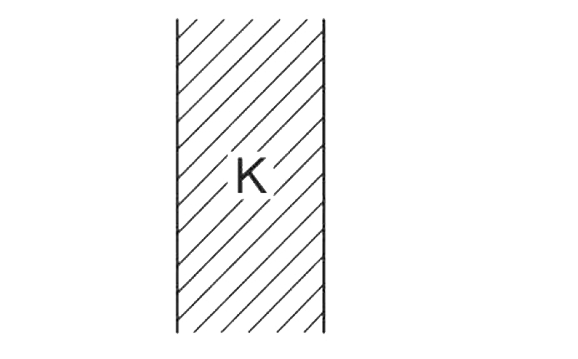

A parallel plate capacitor of plate area A and plate separation d is charged to potential difference V and then the battery is disconnected. A slab of dielectric constant K is then inserted between the plates of the capacitor so as to fill the space between the plates. If Q, E and W denote respectively, the magnitude of charge on each plate, the electric field between the plates (after the slab is inserted), and work done on the system, in question, in the process of inserting the slab, then

A

(a) `Q=(epsilon_0AV)/(d)`

B

(b) `Q=(epsilon_0KAV)/(d)`

C

(c) `E=(V)/(Kd)`

D

(d) `W=(epsilon_0AV^2)/(2d)[1-1/K]`

Text Solution

Verified by Experts

The correct Answer is:
A, C, D
As `C=epsilon_0/dA`

`=(epsilon_0A)/(d)xxV`
`C^'=(Kepsilon_0A)/(d)

`V^'=V/K`
`Q=(epsilon_0AV)/(d)=C^'V^'`
Q will remain same as no charge is leaving or entering the plates during the process of slab insertion
Now, `Q=C^'V^'=C^'E^'d`
`E^'=(Q)/(C^'d)=((epsilon_0AV)/(d))/((Kepsilon_0A)/(d))xx1/d=(V)/(Kd)`
Work done is the change in energy stored
`W=1/2CV^2-1/2C^'V^'2`
`=1/2(epsilon_0AV^2)/(d)-1/2(Kepsilon_0A)/(d)xx(V/K)^2` `[:' V^'=E^'d=V/K]`
`W=1/2(epsilon_0A)/(d)V^2[1-1/K]`
