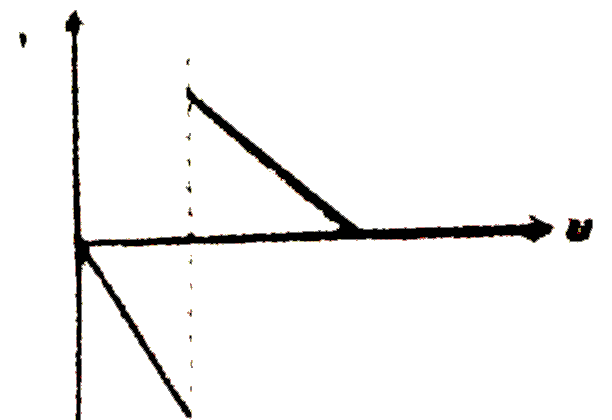

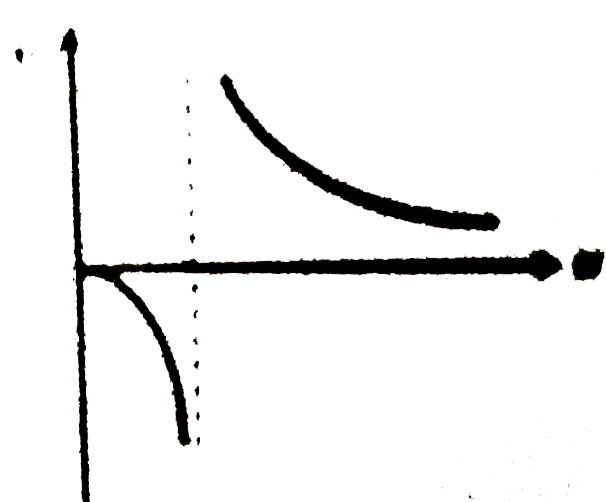

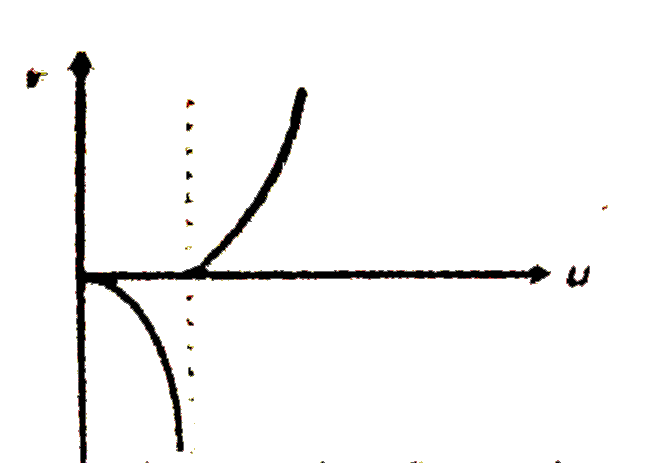

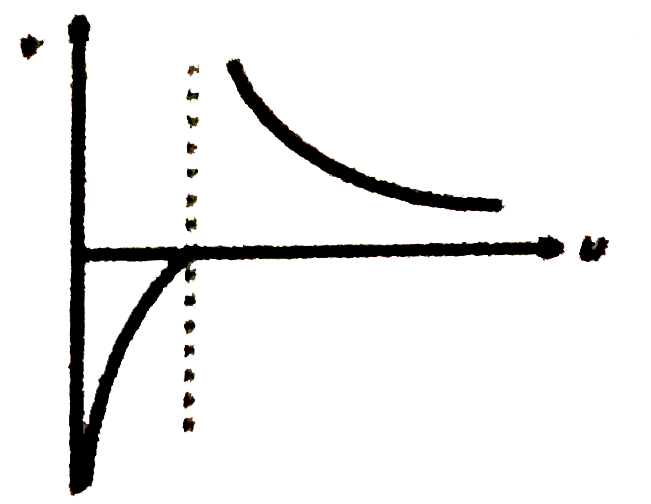

As the position of an object `(u)` reflected from a concave mirrorr is varies, the position of the image `(v)` also varies. By letting the `u` changes from `0` to `+oo` the graph between `v` versus `u` will be
