A galvanometer (coil resistance 99Omega)...

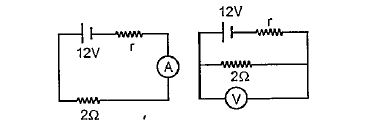

A galvanometer (coil resistance `99Omega`) is converted into an ammeter using a shunt of `1Omega` and connected as shown in figure (a). The ammeter reads 3A. The same galvanometer is converted into a voltmeter by connecting a resistance of `101Omega`series. This voltmeter is connected as shown in figure (b). Its reading if found to be `4/5`of the full scale reading. Find
internal resistance r of the cell.
