A 3 V battery with negligible internal r...

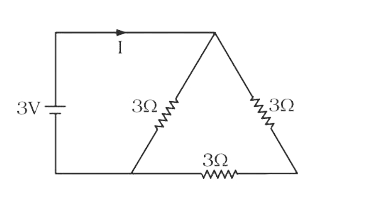

A 3 V battery with negligible internal resistance is connected in a circuit as shown in the figure. The current I in the circuit will be :

A

1A

B

1.5 A

C

2A

D

`(1)/(3)` A

Text Solution

Verified by Experts

The correct Answer is:
B
