In the circuit shown in figure potential...

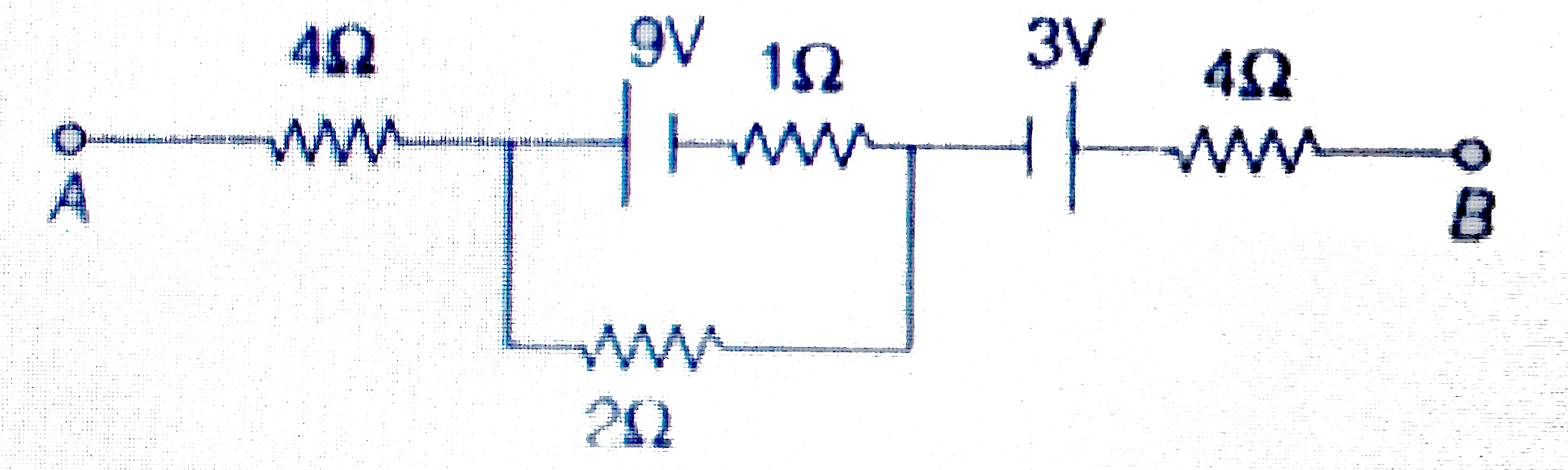

In the circuit shown in figure potential difference between points A and B is 16 V. The current passing through `2 Omega` resistance will be

A

2.5 A

B

3.5 A

C

4.0 A

D

zero

Text Solution

Verified by Experts

The correct Answer is:
B
