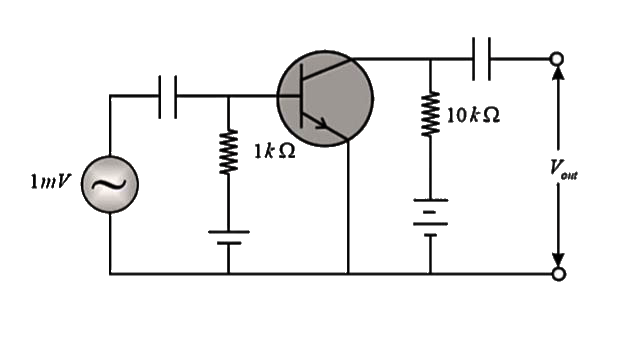

In the following common emitter configuration NPN transistor with current gain `beta = 100` is used. The output voltage of the amplifier will be

A

10 mV

B

0.1 mV

C

1.0 V

D

10 V

Text Solution

Verified by Experts

The correct Answer is:
C
