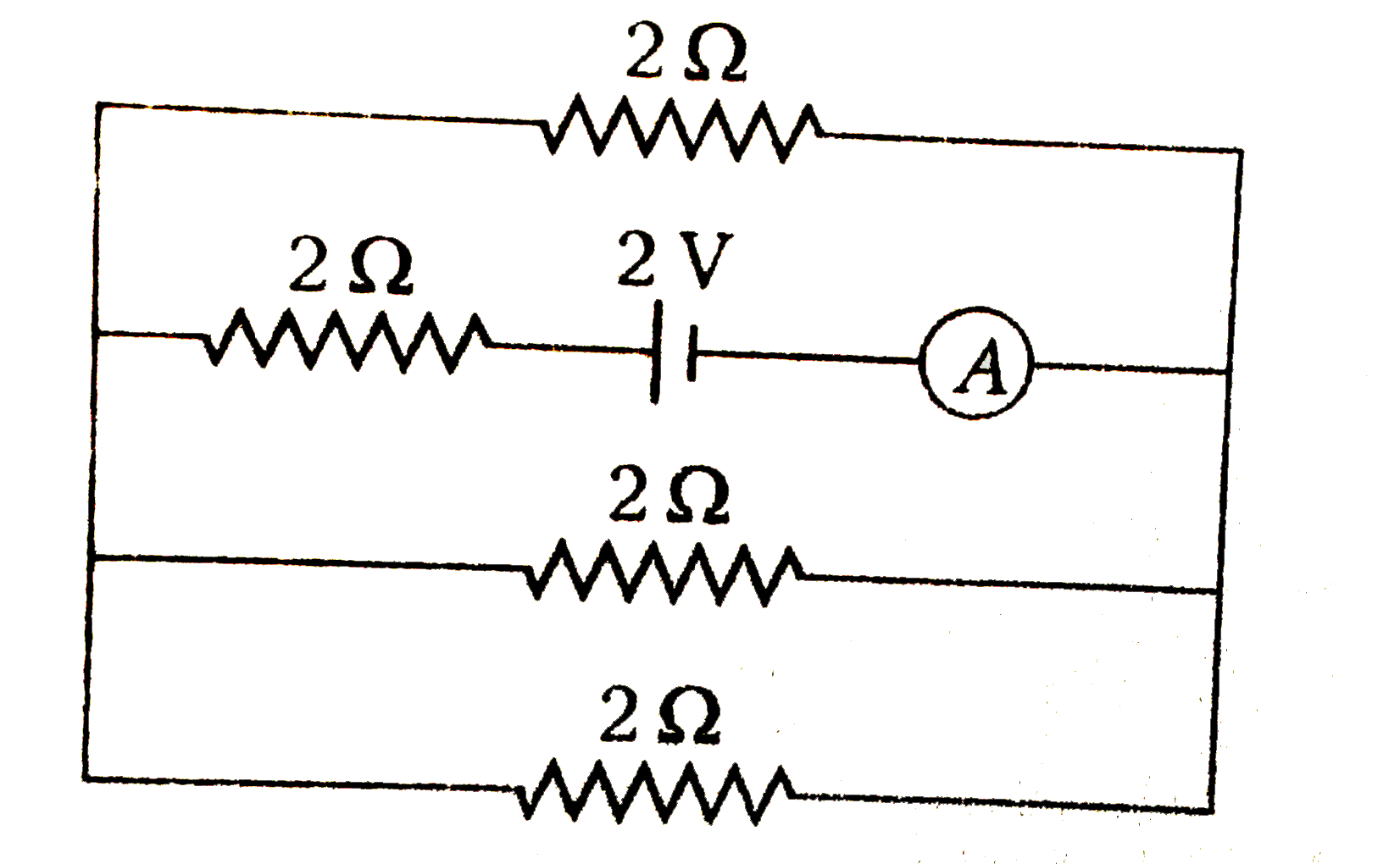

The reading of the ammeter as per figure shown is

A

`1/8A`

B

`3/4A`

C

`1/2A`

D

`2A`

Verified by Experts

The correct Answer is:

B
