A metal rod of length 2m has cross-secti...

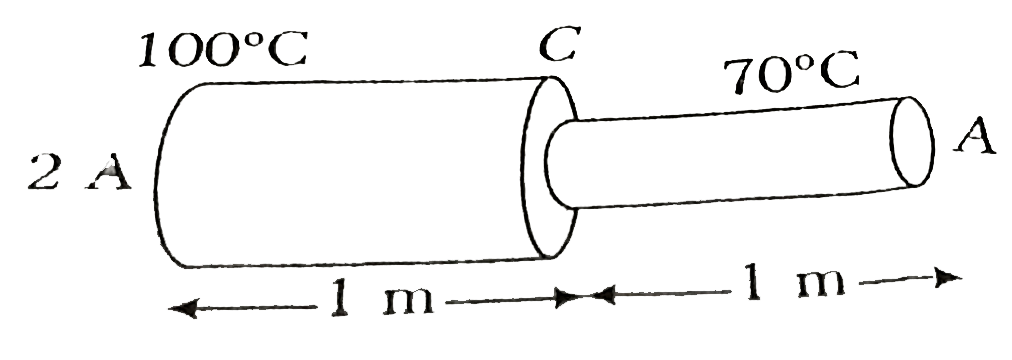

A metal rod of length 2m has cross-sectional areas 2A and A as shown in figure. The ends are maintained at temperature 100 c and `70^(@)`C. The temperature at middle point C is

Text Solution

Verified by Experts

The correct Answer is:
90
