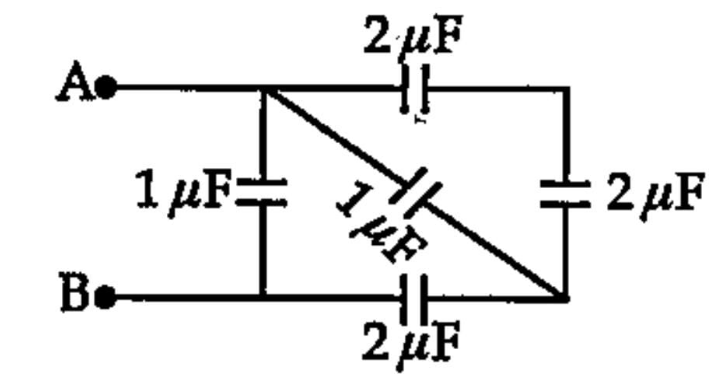

The net capacitance of system of capacitors in figure between points A and B is

A

`1 mu F`

B

`2 mu F`

C

`3 mu F`

D

`4 mu F`

Text Solution

Verified by Experts
