Two batteries of emg 4V and 8V with inte...

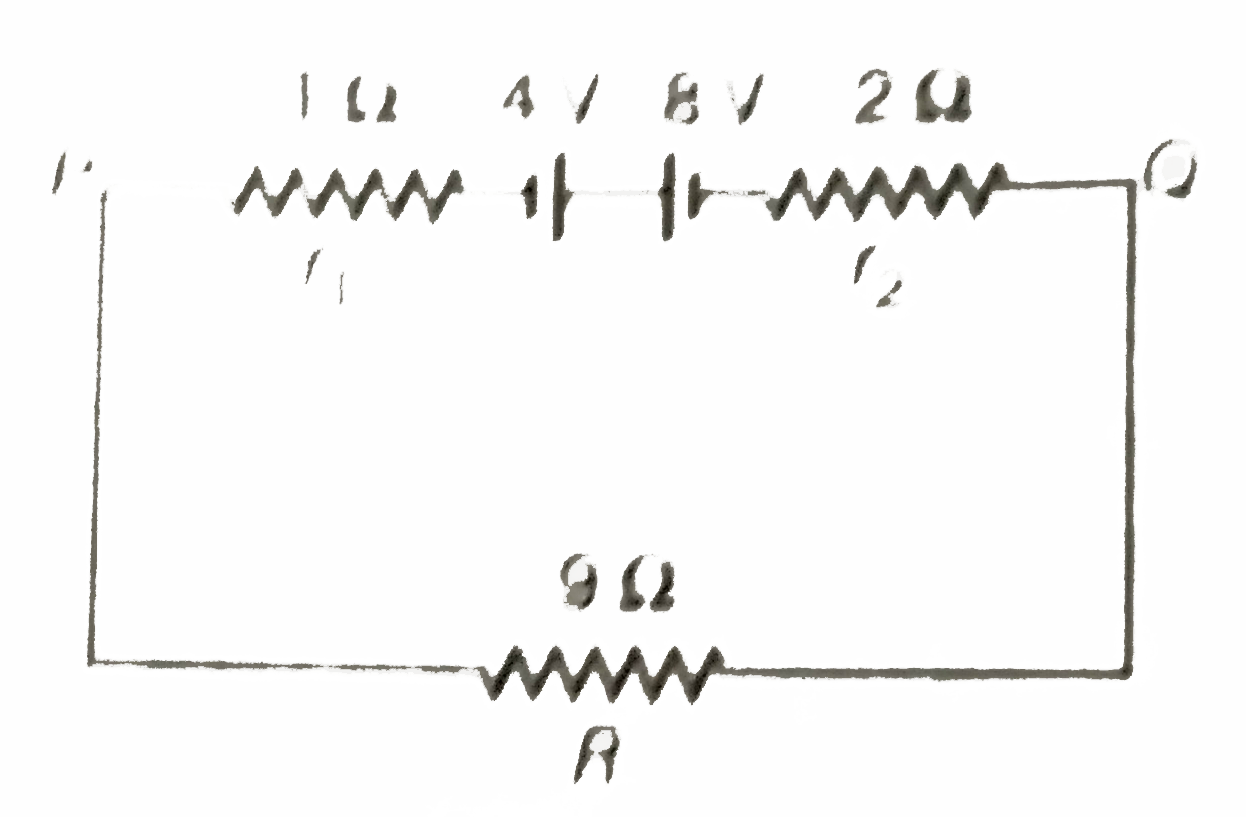

Two batteries of emg 4V and 8V with internal resistance `1Omega` and `2Omega` are connected in a circuit with a resistance of `9Omega` as shown in figure. The current and potential difference between the point P and Q are

A

`1/2,9V`

B

`1/(12),12V`

C

`1/3A,3V`

D

`1/6A,4V`

Text Solution

Verified by Experts

The correct Answer is:
C
