An ideal liquid is streamline motion flo...

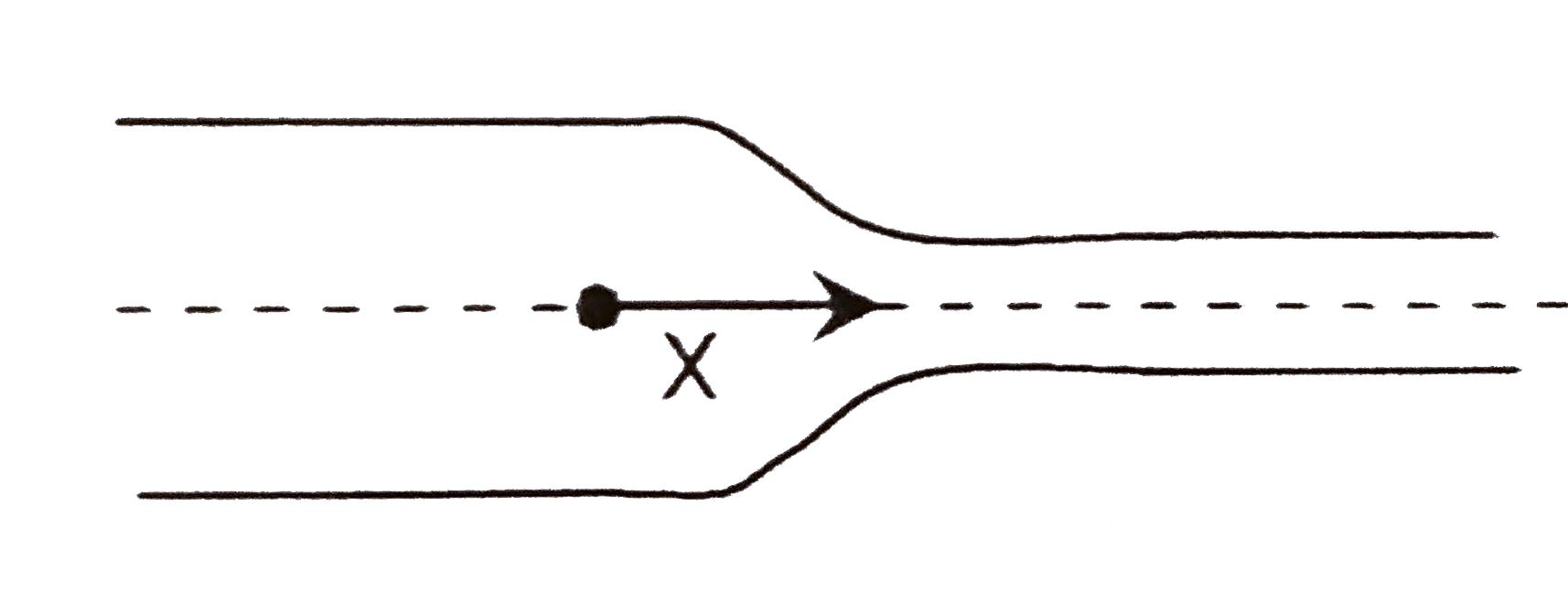

An ideal liquid is streamline motion flows through a friction less duct with varying cross section as shown in figure, Pressure P at points along x axis of duct is most likely to be represented by

A

B

C

D

Text Solution

Verified by Experts

The correct Answer is:
B
