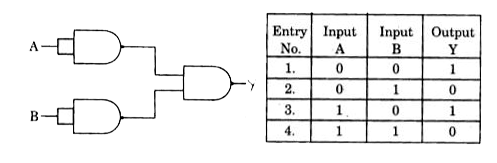

Which one of the entries given in the truth table is true for the following logic circuit ?

A

1

B

2

C

3

D

4
