Refer to the figure. Deflection in the g...

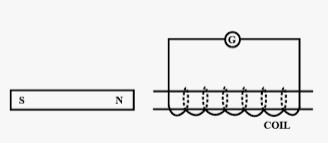

Refer to the figure. Deflection in the galvanometer (G) occurs, when.

A

the magnet is pushed into the coil

B

the magnet is rotated into the coil

C

the magnet is stationary at the centre of the coil

D

the number of trns in the coil is reduced

Text Solution

Verified by Experts
