What is the current out of battery ?...

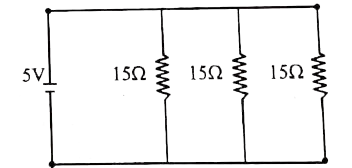

What is the current out of battery ?

A

1A

B

2A

C

3A

D

4A

Text Solution

Verified by Experts

The correct Answer is:
A
`1 /R_p = 1/15 + 1/15 + 1/15`
` = (1+ 1+1)/15 = 3/15`
`:." R"_P = 15/3 = 5 Omega`
` I = V/R_P = 5/5 = 1 A`
