What is Peltier effect ?

Explanation

In 1834, Peltier discovered that when an electric current is passed through a of a thermocouple, heat is evolved at one. Junction and absorbed at the other junction. This is known as Peltier effect.

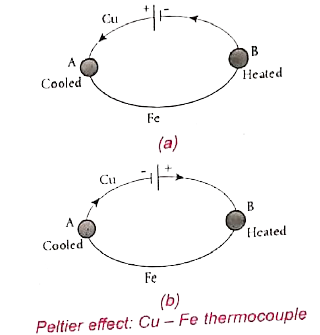

In the Cu-Fe thermocouple the junctions A and B are maintained at the same temperature. Let a current from a battery flow through the thermocouple (Figure (a)). At the junction A, where the current flows from Cu to Fe, heat is absorbed and the junction A becomes cold. At the junction B, where the current flows from Fe to Cu heat is liberated and it becomes hot. When the direction of current is reversed, junction A gets heated and junction B gets cooled as shown in the Figure (b). Hence peltier effect is reversible.
