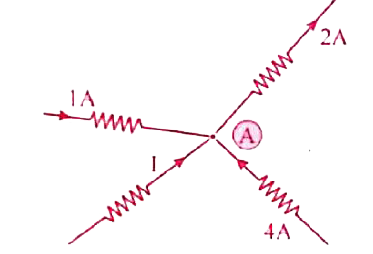

Calculate the value of current I in the following figure at the junction A

Explanation

Applying Kirchhoff.s current law (I law) we get
` 1 - 2 + 4 + I = 0`
` 3 + I = 0`
`:." I = -3 A"`
`:." The current flows away from the junction" `
I = -3 A
