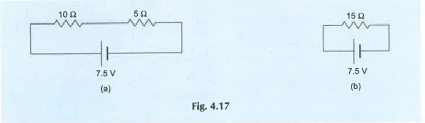

Calculate the potential across each resistor in the circuit shown in Figure 4.17 a.

Give truth table for a circuit shown in figure.

A resistor of 200 Omega and a capacitor of 15.0 muF are connected in series to a 220 V, 50 Hz ac source. (a) Calculate the current in the circuit, (b) Calculate the voltage (rms) across the resistor and the capacitor. Is the algebraic sum of these voltages more than the source voltage? If yes, resolve the paradox.

A voltmeter of a very high resistance is joined in the circuit as shown in figure. The voltage shown by this voltmeter will be ...... .

A resistor of 200 Omega and a capacitor of 15.0 muF are connected in series to a 220V, 50Hz as source . (a) Calculate the current in the circuit. (b) Calculate the voltage (rms) across the resistor and the capacitor. Is the alebraic sum of these voltages more than the source voltage? If yes resolve the paradox.

An alternating voltage is connected in series with a resistor R and an inductor L. If the potential drop across the resistor is 200 V and across the inductor is 150 V, then what is the applied voltage ?

Thirteen resistances each of resistance R ohm are connected in the circuit as shown in the figure below. The effective resistance between A and B is

The equivalent resistance between points X and Y in the circuit shown in the following figure is ………………. .

In the circuit diagram given in figure suppose the resistors R_1, R_2 and R_3 have the values 5Omega, 10 Omega, 30 Omega respectively, which have been connected to a battery of 12V. Calculate (a) the current through each resistor, (b) the total current in the circuit, and (c) the total circuit resistance.

A 3 volt battery with negligible internal resistance is connected in a circuit as shown in the figure. The current I in the circuit will be :
