The electric potential for an electric f...

The electric potential for an electric field directed parallel to X-axis is shown in the figure. Choose the correct plot of electric field strength.

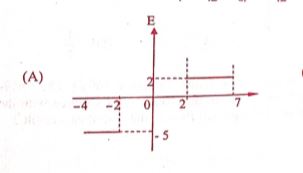

A

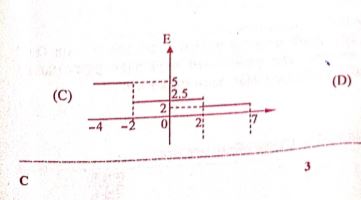

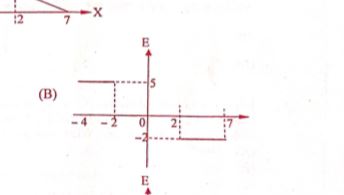

B

C

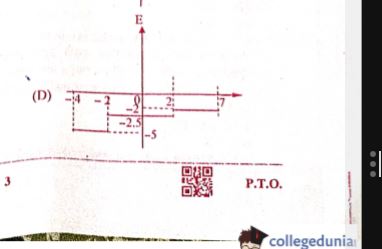

D

Text Solution

Verified by Experts
