Two resistances R(1) = X Omega and R(2) ...

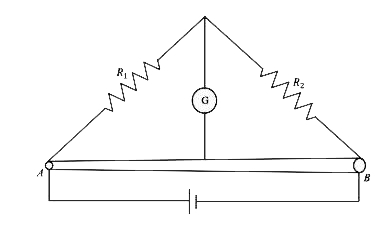

Two resistances `R_(1) = X Omega and R_(2) = 1 Omega ` are connected to a wire AB of uniform resistivity , as shown in the figure , The radius of the wire linearly along its axis from 2.2 mm at A to 1 mm at B . A galvanometer (G) connected to the center of the wire , 50 cm from each and along its axis shows zero deflection when A and B are connected to a battery . The value of X is ______.
