CASE STUDY 3

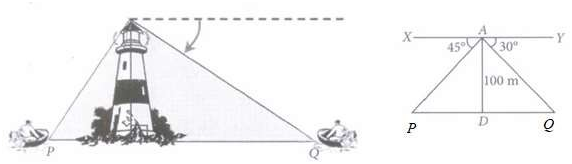

A boy is standing on the top of light house. He observed that boat P and boat Q are approaching the light house from opposite directions. He finds that angle of depression of boat P is `45°` and angle of depression of boat Q is `30°`. He also knows that height of the light house is 100 m.
Based on the above information, answer the following questions.
(i) What is the measure of `angle APD`?
(ii) If `angle YAQ = 30°`, then `angle AQD` is also `30°`, Why?
(iii) Find length of PD
(iv) Find length of DQ
