The variation of induced emf (E) with ti...

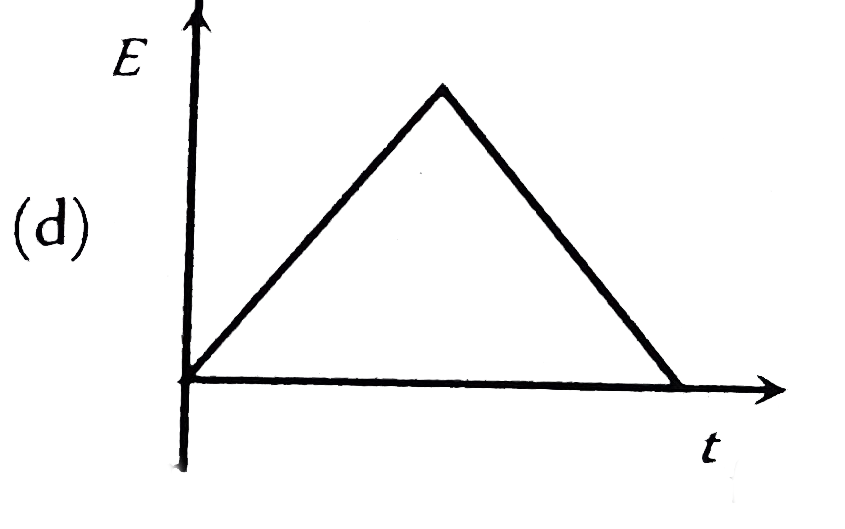

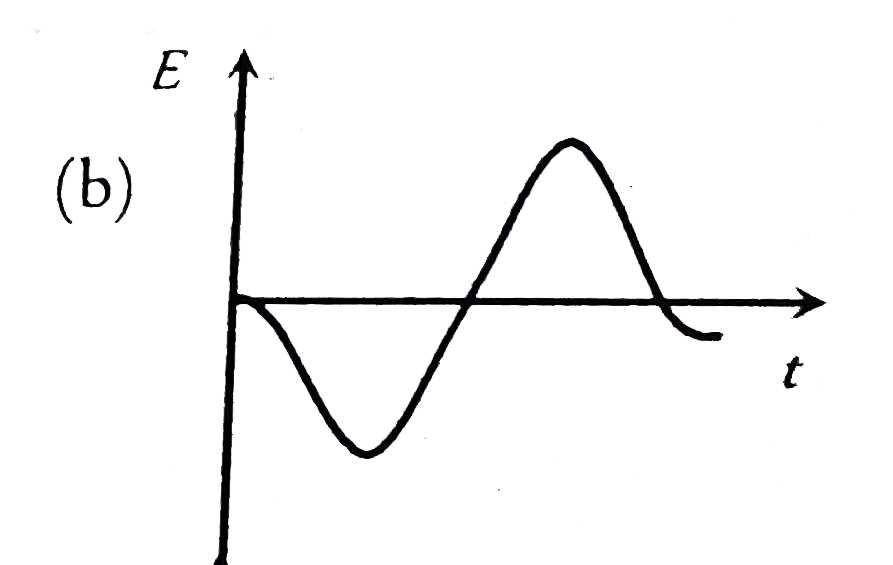

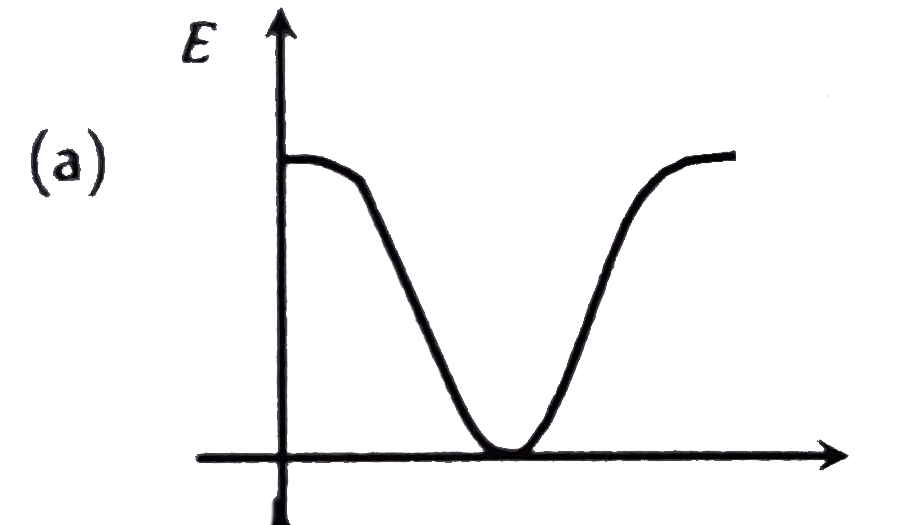

The variation of induced emf `(E)` with time `(t)` in a coil if a short bar magnet is moved along its axis with a constant velocity is best represent as
