Triangles
Geometry is based on triangles, which are polygons with three sides and three angles. They appear to be used in many aspects of mathematics and daily life, from calculating areas and distances to designing structures. We provide you with these comprehensive notes on triangles because of the shape's widespread use and importance in geometry. So let's begin!
1.0Table of Contents:
- Triangles Definition
- Types of Triangles
- Properties of a Triangle
- Formulas Related to the Triangle
- Solved Examples
- FAQs
2.0Triangles Definition:
A triangle is a two-dimensional polygonal shape of geometry with three sides, three angles, and three vertices. It is one of the most basic shapes of geometry, but the most stable form, which is why it is a commonly applied shape in architecture and engineering. In solving problems involving triangles, it is represented by the symbol .
Technical Terms Related to Triangles:
- Vertices: Vertices are the points of intersection of any geometric shape, and for a triangle, it is the triangle's three points.
- Sides: They are the three line segments connecting the vertices.
- Angles of a Triangle: The three angles that are formed at the vertices by the sides intersecting are known as angles of a triangle.
- Altitude: An altitude is a perpendicular line that is drawn from a vertex to the opposite side.
- Median: Median is a line segment from the vertex to the middle of the opposite side.
- Bisector: A line that divides an angle into two equal angles or a segment into two equal sides is referred to as an angle bisector in triangles.
3.0Types of Triangles:
Triangles according to the side length and angle measure can be categorised into six most common types, which are:
A. Based on Sides | ||
Types | Definition | Visual Representation |

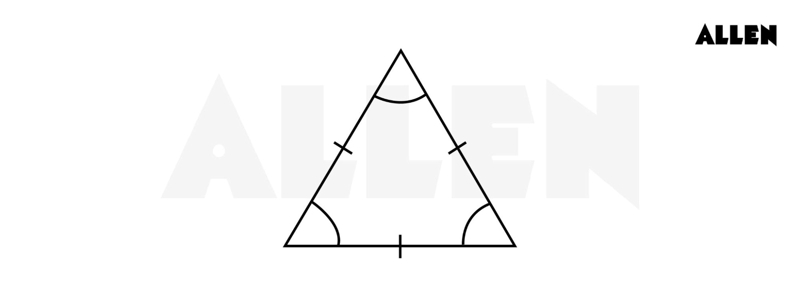

Equilateral | An equilateral triangle refers to a triangle where all three sides are equal. | |

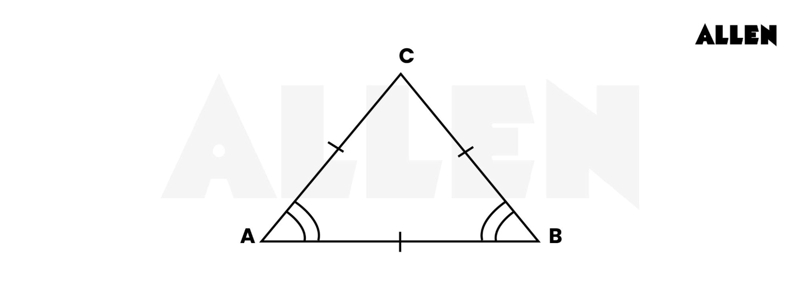

Isosceles | Triangles with two sides of equal length are referred to as isosceles triangles. | |

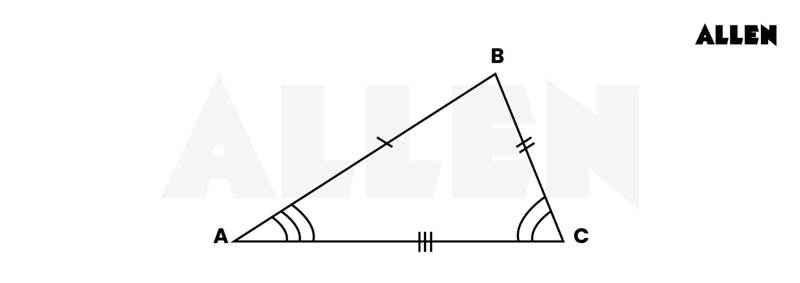

Scalene | Triangles with all sides of a different length are referred to as scalene triangles. | |
B. Based on Angles | ||
Types | Definition | Visual Representation |
Acute | Acute triangles refer to the triangles where all three angles are less than 90°. |  |
Right | A triangle that has one angle exactly equal to 90° is a right-angled triangle. It contains the longest side opposite the right angle, called the hypotenuse. | |
Obtuse | An obtuse triangle contains a maximum of one angle of more than 90°. | |
4.0Properties of a Triangle:
All triangles have some common as well as individual properties depending on their type. Some of them are:
Common Properties of a Triangle:
- The total of all the angles of a triangle, of all the varieties, is always 180°. That is, if in a particular triangle the angles are A, B, and C, then:
A + B + C = 180°
- The addition of two sides of a triangle is always equal to the opposite exterior angle. That is, if in a certain triangle the two sides are A and B, with an opposite exterior angle E, then:
A + B = E
- The largest angle is opposite the largest side and vice versa.
- The opposite side of the smallest angle is the smallest among all three sides of the triangle, and the reverse is also true.
- Equal angles are opposite to equal sides, and equal sides are opposite to equal angles.

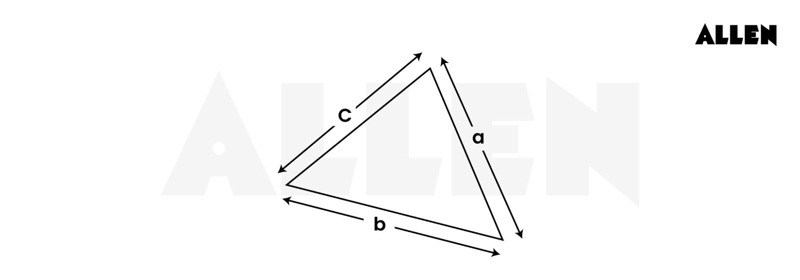

- The total of any two sides of any triangle is always larger than its third side. That is, let the three sides of a triangle be a, b, and c, then by this property:
a+b＞c or a+c＞b or b+c＞a
Triangle-Specific Properties:
- In an equilateral triangle, all the sides are equal. Furthermore, the measure of all its angles is 60°.
- An isosceles triangle contains two sides that are equal in length, and together with this, it also contains two angles opposite to the equal sides.
- In any right triangle, the two smaller sides (let's say a and b) squared add up to the square of the longest side (the hypotenuse) (let's call it c).
This is a property of a right triangle, better known as Pythagoras' theorem, and formulated as:
a2 + b2 = c2
5.0Formulas Related to the Triangle:
Perimeter of Triangle:
The perimeter of any geometrical figure is nothing but the sum of all the sides of the figure. Therefore, the perimeter of a triangle is also the sum of all its three sides, a, b, and c, and the formula for the same can be written as:
Perimeter of a Triangle = a + b + c
Area of Triangle:
Area is the region covered by a geometric shape. For a triangle, it is the region covered by its three sides.

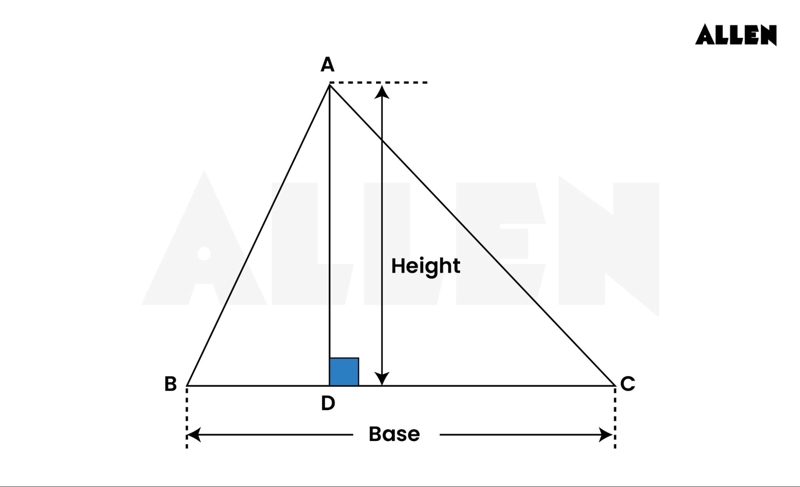

1. By Base and Height:
Area of Triangle= 12BaseHeight
2. By Heron’s Formula:
Area of Triangle=s(s-a)(s-b)(s-c)
\text{Area of Triangle} = \sqrt{s(s - a)(s - b)(s - c)}
Where s is the semiperimeter of the triangle, that is:
s = a+b+c2
3. By Coordinate Geometry:
Area of Triangle = 12[x1(y2-y3)+x2(y3-y1)+x3(y1-y2)]
Where (x1,y1), (x2,y2), and (x3,y3) are the appropriate vertices of a triangle located on the Cartesian plane.
6.0Solved Examples:
Problem 1: The angles of a triangle are in the ratio 2:3:4. Find all the angles.
Solution: Let the angles of the triangle be 2x, 3x, and 4x.
Now, using the angle sum property of triangles:
A + B + C = 180°
2x + 3x + 4x = 180°
9x = 180°
x = 20°
Therefore, all the angles of triangles will be:
- A = 2x = 2(20°) = 40°
- B = 3x = 3(20°) = 60°
- C = 4x = 4(20°) = 80°
Problem 2: In an isosceles triangle, the vertex angle is 40°. Determine the base angles.
Solution: According to the property of an isosceles triangle, the base angles are equal to each other in measurement. Therefore, the base angles are B = C = x.
Now, using the angle sum property:
A + B + C = 180°
40 + x + x = 180°
2x = 180° – 40° = 140°
x = 70°
Hence, the base angles for the given triangle are 70° each.
Problem 3: A triangle with sides 13 cm, 14 cm, and 15 cm. What is the height from the side that measures 14 cm?
Solution: According to the question:
The semiperimeter of the triangle(s) = 13+15+142 =21
Now, using Heron’s formula for the area of a triangle(A): s(s-a)(s-b)(s-c)
A=21(21-13)(21-14)(21-15)
A=21876=84cm2
Now, using the base and height formula of the area of a triangle, along a 14cm base:
Area of Triangle= 12BaseHeight
84= 1214Height
Height=12cm
